Panel Formwork Systems RAPID&RAPIDO

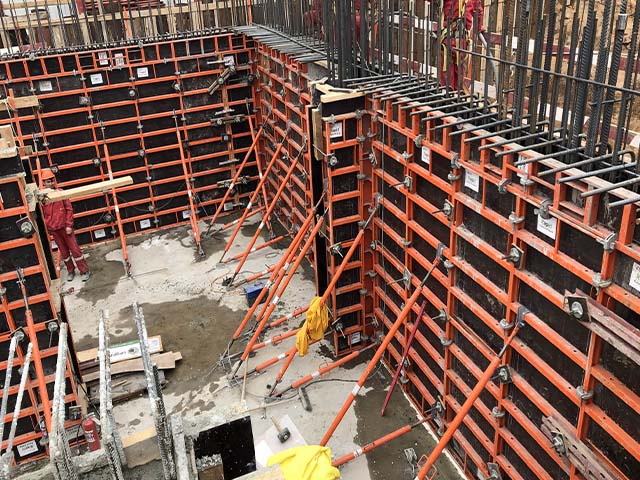

PANEL FORMWORK SYSTEM RAPIDO / PANEL FORMWORK SYSTEM RAPIDO is a crane-carried, steel-framed, plywood-surfaced panel formwork system. In the main frame of the system, a specially shaped S355 MC steel profile with high torsional resistance, designed by Welser Profile, is used. 21 mm birch plywood is used on panel surfaces. Panel widths are produced as 30-45-60-75-90-105-120 -240 cm and heights as 60-90-120-150-180-210-240-270-300-330 cm. Thanks to the perforated profiles drilled every 5 cm used in RAPIDO-UNI panels, curtain and column molds of any size can be easily adjusted and cast. RAPIDO formwork system is designed for 80 kN/m² fresh concrete pressure. Before the panels are subjected to the oven paint process, they are cleaned of chemical oils on the surface by sandblasting. Additionally, upon request, our products can be dip galvanized according to TS 914 EN ISO 1461 standards.
